lightweight acoustic tiles

Lightweight Acoustic Tile Range

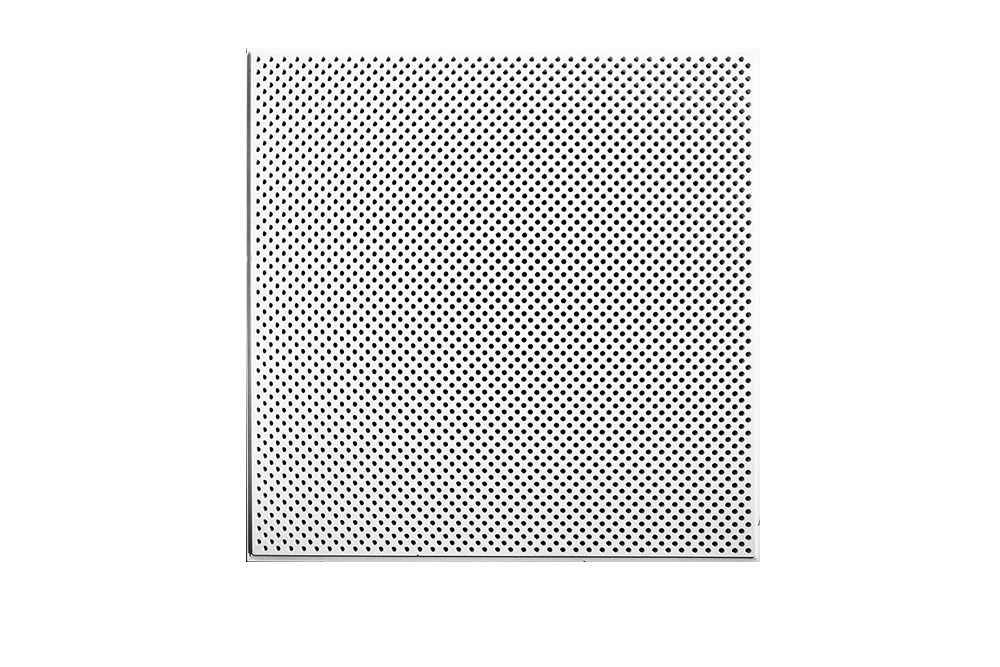

EcoCheck
Product Specifications

Tile Name: EcoCheck

Collection: Lightweight

Thickness (mm): 30

Size(mm): 600 x 600

CAC: 35/39¹ 35/39²

R Value: 0.80

NRC: 0.75¹ 0.80¹ 0.70²

% light reflective: 0.76

Mass (Kg/sqm):12.20

Edge Finish: Bevelled

Fixing: Exposed Grid

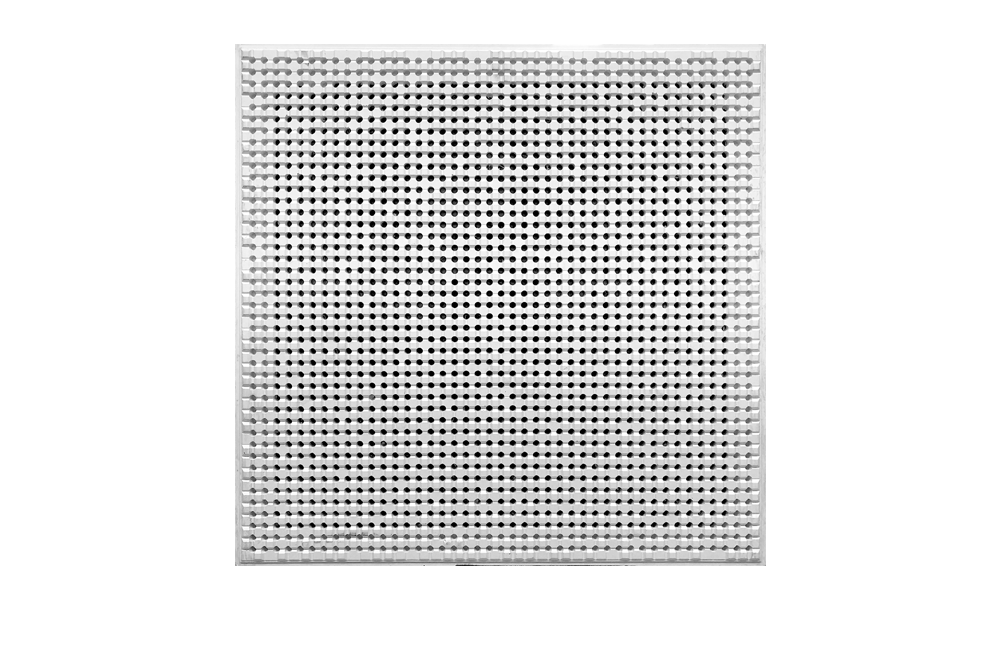

Nu Shadex
Product Specifications

Tile Name: Nu Shadex

Collection: Lightweight

Thickness (mm): 30

Size(mm): 600 x 600

CAC: 32/36¹ 35/39²

R Value: 0.80

NRC: 0.80¹ 0.70¹ 0.70²

% light reflective: 0.78

Mass (Kg/sqm):12.20

Edge Finish: Bevelled

Fixing: Exposed Grid

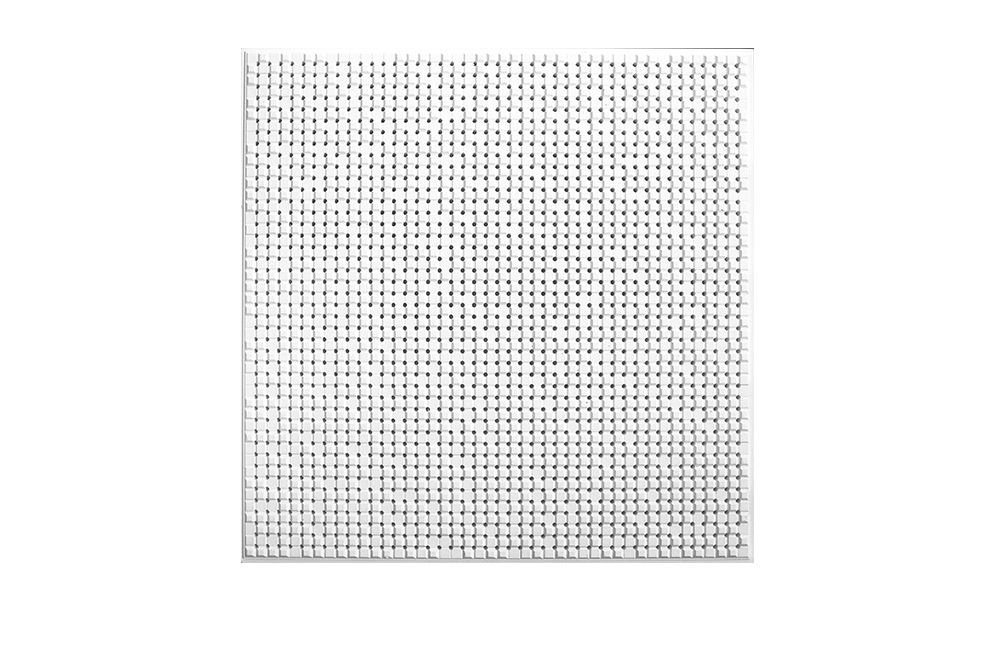

Shadex
Product Specifications

Tile Name: Shadex

Collection: Lightweight

Thickness (mm): 30

Size(mm): 600 x 600

CAC: 32/36¹ 32/36²

R Value: 0.80

NRC: 0.70¹ 0.65²

% light reflective: 0.73

Mass (Kg/sqm):12.20

Edge Finish: Bevelled

Fixing: Exposed Grid

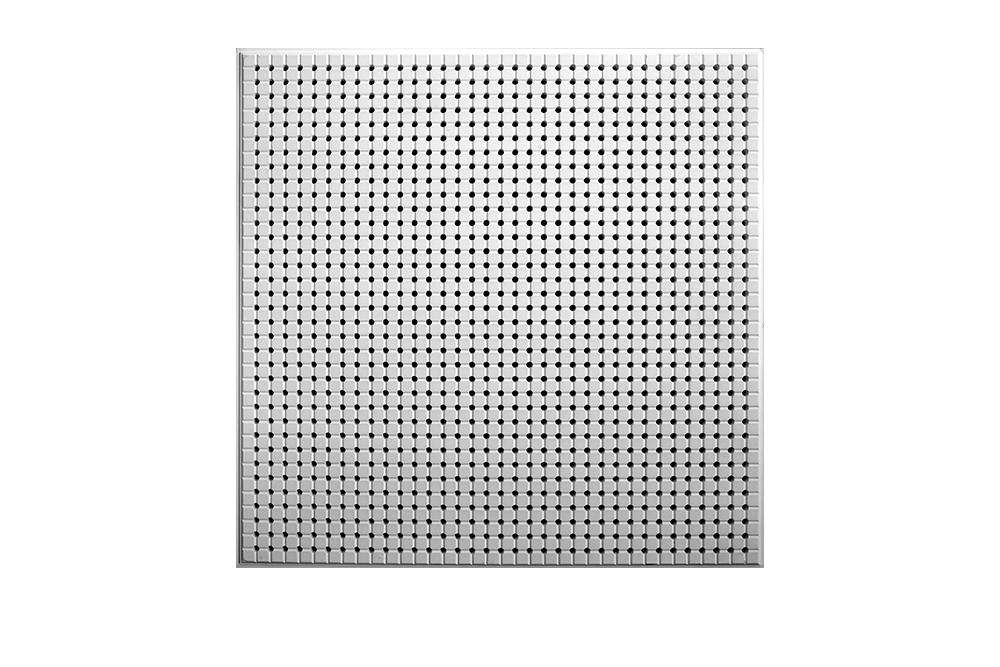

Hush
Product Specifications

Tile Name: Hush

Collection: Lightweight

Thickness (mm): 30

Size(mm): 600 x 600

CAC: 34/38¹ 34/38²

R Value: 0.80

NRC: 0.70¹ 0.65²

% light reflective: 0.77

Mass (Kg/sqm):12.20

Edge Finish: Bevelled

Fixing: Exposed Grid

Random Hole
Product Specifications

Tile Name: Random Hole

Collection: Lightweight

Thickness (mm): 30

Size(mm): 600 x 600

CAC: 34/38¹ 34/39²

R Value: 0.80

NRC: 0.70¹ 0.65²

% light reflective: 0.76

Mass (Kg/sqm):12.20

Edge Finish: Bevelled

Fixing: Exposed Grid
