EcoCheck

EcoCheck Acoustic Tiles

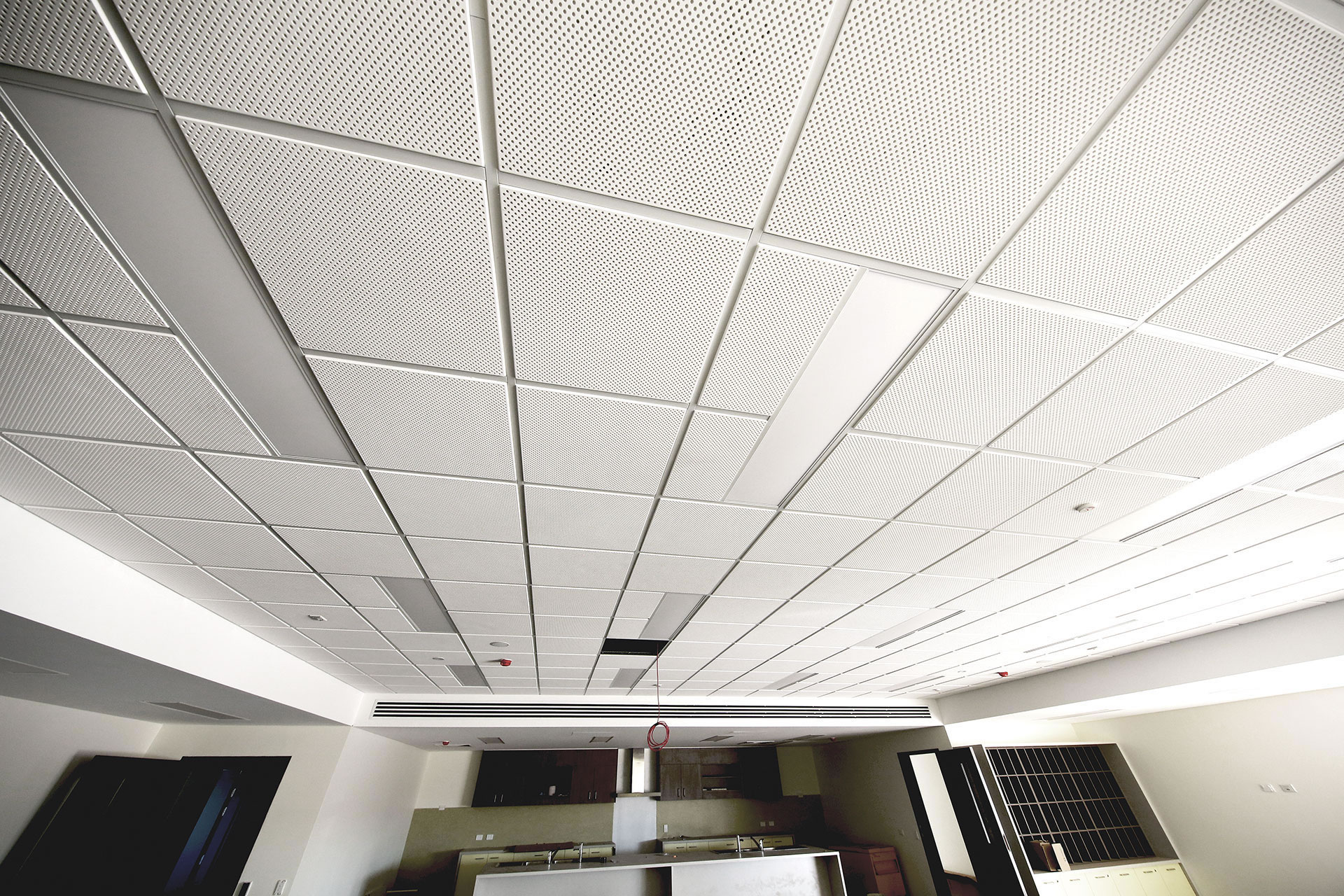

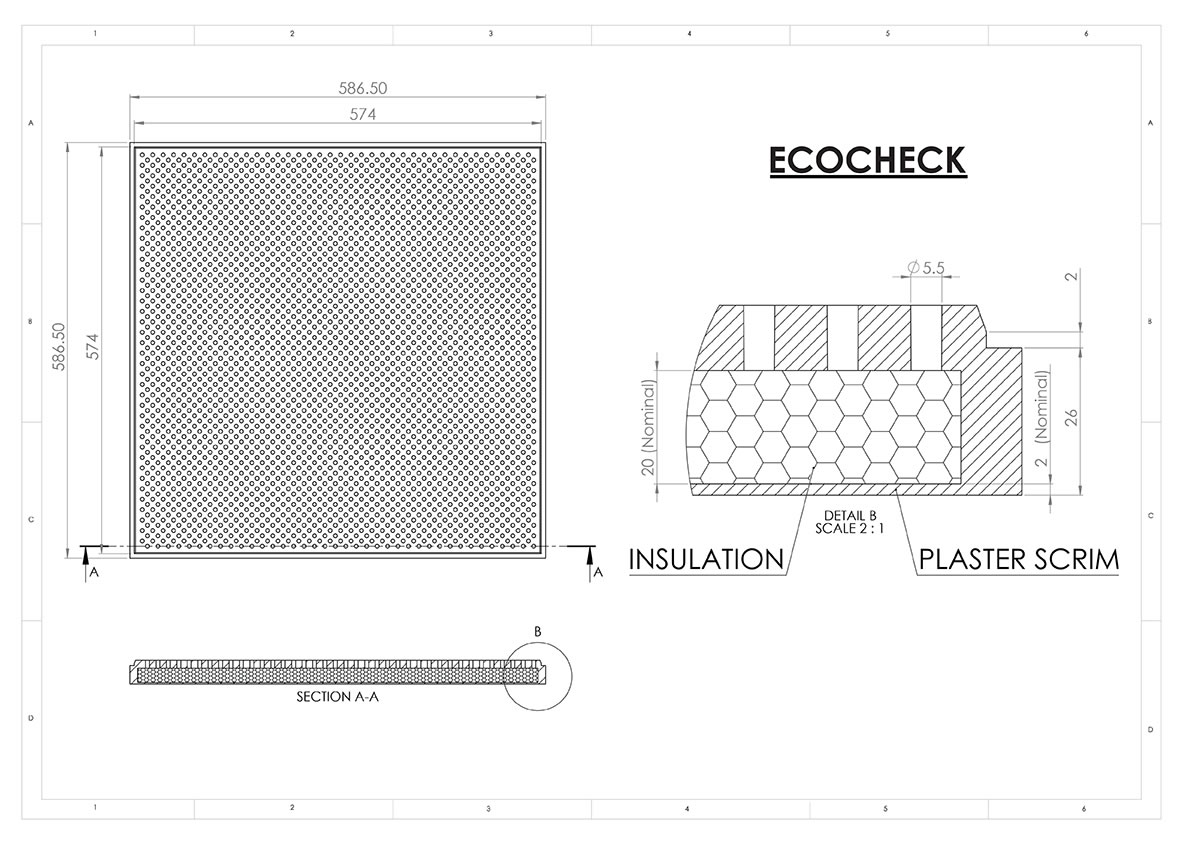

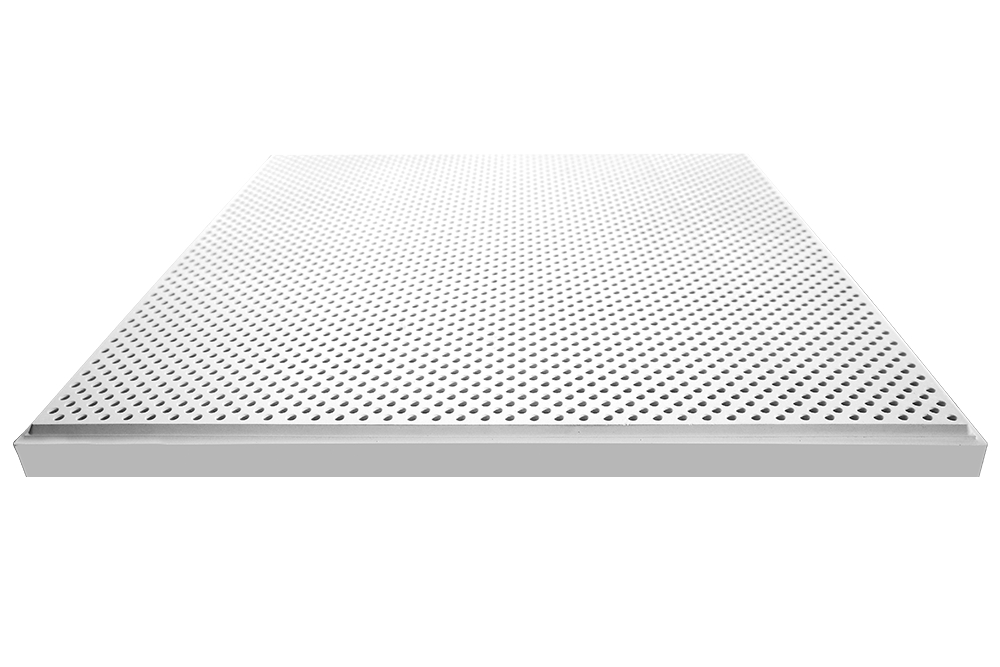

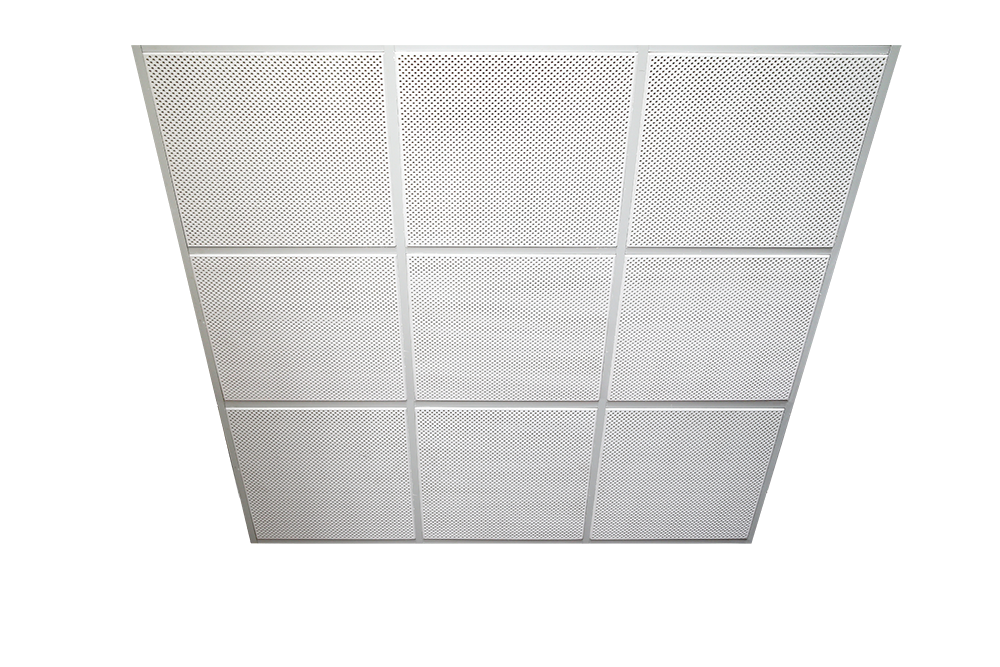

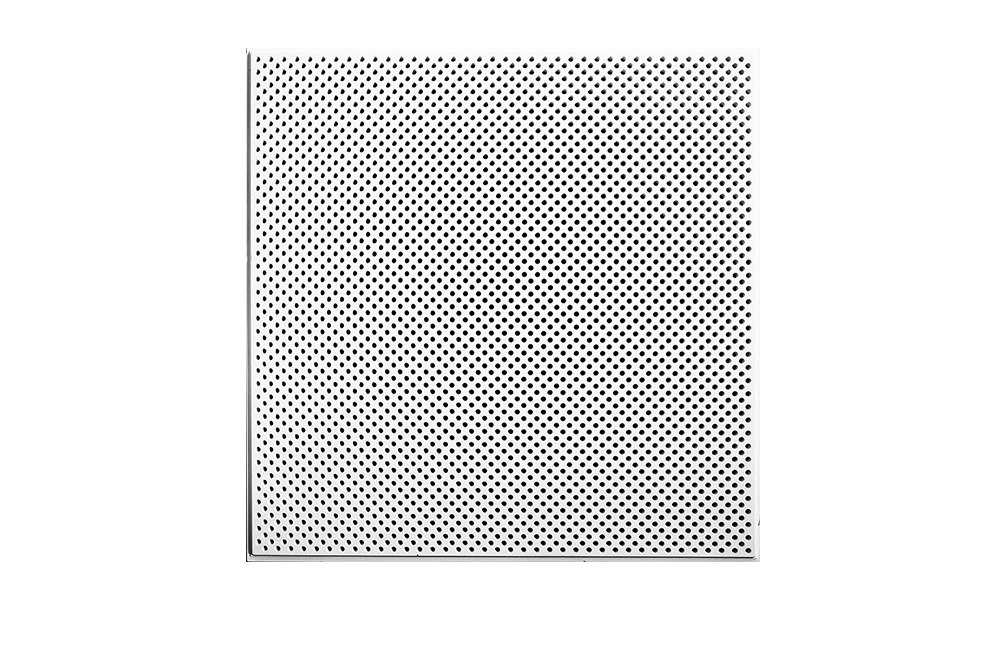

Ecocheck is a diamond patterned acoustic ceiling tile, manufactured from reinforced casting plaster and offer excellent sound absorption, controlled sound transmission as well as a decorative finish. The tiles are supplied with an integrated sound absorbent batt inserted during casting and are produced in a range of varying designs. These tiles are pre-painted white.

Advantages

1. Dimensionally stable will not warp or buckle
2. Not affected by humidity
3. Fire resistant
4. Acoustic properties
5. Redecoration does not affect the properties
6. Easy removal and replacement

To be used in conjuction with exposed ceiling grid: 24 mm T Bar steel or aluminum 600 x 600 system.


Graph 1: Results with Glasswool - underside of tile exposed - NRC 0.80

ceil air absorbtion

Graph 1: Sound Absorption Coefficients of Bailey Interiors EcoCheck 600mm x 600mm Perforated Plaster with 20mm thick 32kg/m3 Glasswool Substrate Ceiling Tiles tested with a 400mm air gap.


Graph 2: Results with Glasswool - underside of tile sealed - NRC 0.75

ceil air absorbtion

Graph 2: Sound Absorption Coefficients of Bailey Interiors EcoCheck (Drop In) 600mm x 600mm Perforated Plaster Ceiling Tiles with 25mm thick @ 32kg/m3 Glasswool backing compressed to 20mm and sealed with a plaster skim coat tested with a 400mm air gap


Graph 3: Results with Polyester - underside of tile sealed - NRC 0.70

ceil air absorbtion

Graph 3: Sound Absorbtion, with polyester sound absorbing batt insert


Graph 4: Results with Glasswool - underside of tile sealed - CAC 35

ceil air absorbtion

Graph 4: 25mm glasswool insulation @ 32 kg/m3; compressed to 20mm Thin 2mm plaster skim coat over insulation to seal tile>


Graph 5: Results with Polyester - underside of tile sealed - CAC 35

ceil air absorbtion

Graph 5: 25mm Polyester insulation @ 32 kg/m3; compressed to 20mm Thin 2mm plaster skim coat over insulation to seal tile


CAC increase by 4dB if R3.5 insulation batts are added, 1800 each side of partition.

Product Specifications

Tile Name: EcoCheck

Collection: Plaster Acoustic Tile (Drop In)

Thickness (mm): 30

Size(mm): 600 x 600

% Open Area: 22.7

R Value: 0.80

% light reflective: 0.76

Mass (Kg/sqm): 12.20

Edge Finish: Bevelled

Fixing: Exposed Grid

Fiberglass insulation batt:
32Kg/cu.m, 20mm thick Glasswool/Polyester


Glasswool Results

CAC: 35a / 39b

NRC: 0.80¹ / 0.75²


Polyester Results

CAC: 35a / 39b

NRC: 0.70²

Notes:

a Tile only
b Added R3.5 insulation batts, 1800 each side of partition to consistently increase acoustic performance by 4dB

¹Underside of tile exposed *
²Underside of tile sealed with plaster skim coat

* Acoustic ceiling tiles are supplied underside of tile sealed off with a plaster skim coat as standard. Please contact us for unsealed options.
