Casino

Casino Acoustic Tile

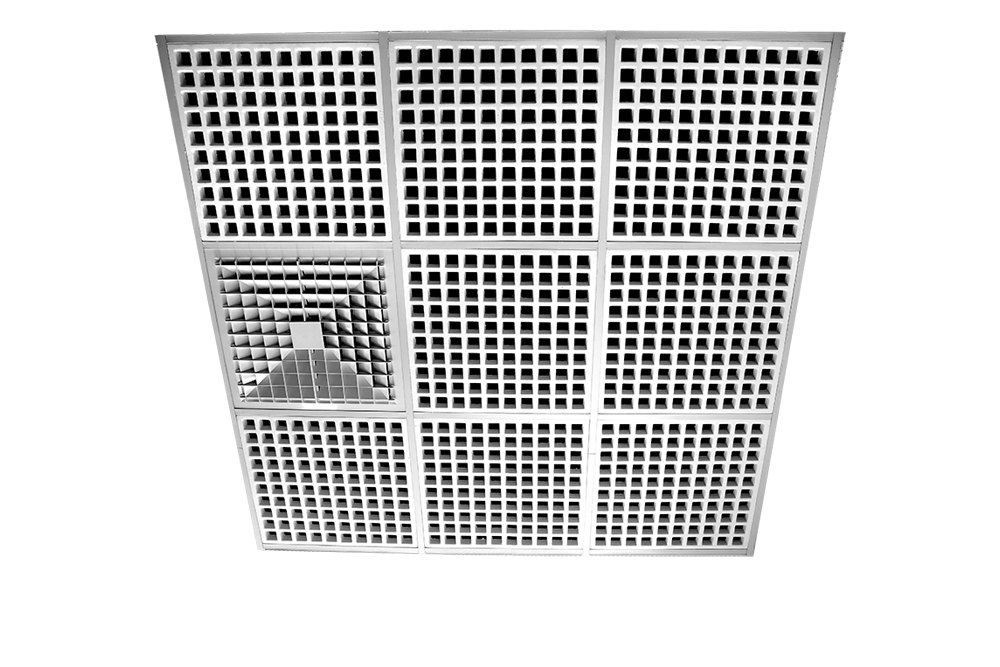

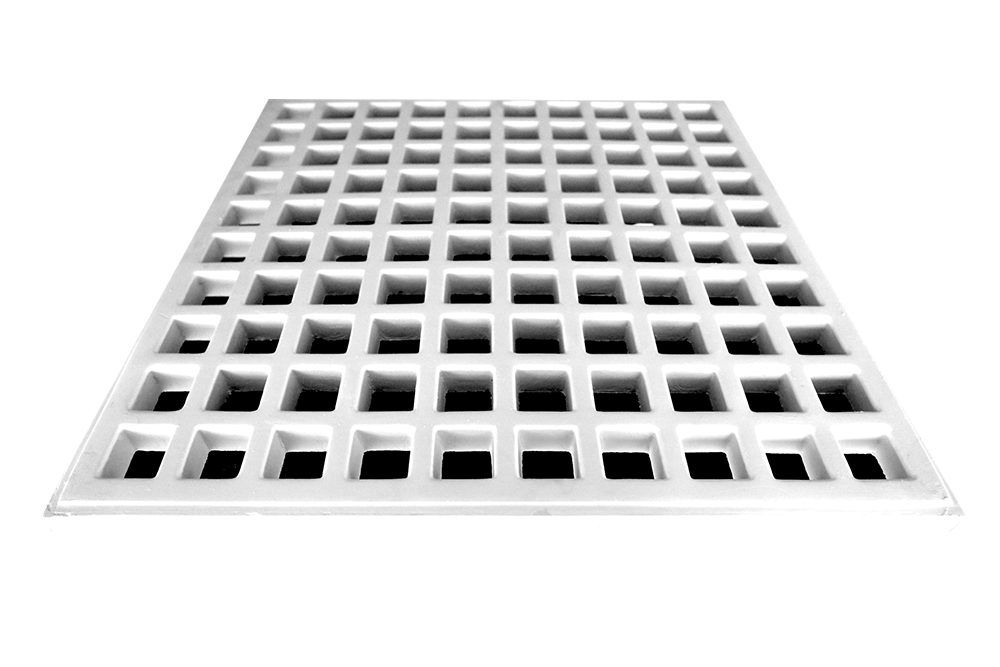

A 25mm thick tile with 45mm square holed openings in a 10 x 10 grid. Achieves a very high acoustic rating

Advantages

1. Durable
2. Easily installed
3. Noise reduction properties
4. Acoustic properties

To be used in conjuction with exposed ceiling grid: 24 mm T Bar steel or aluminum 600 x 600 system.

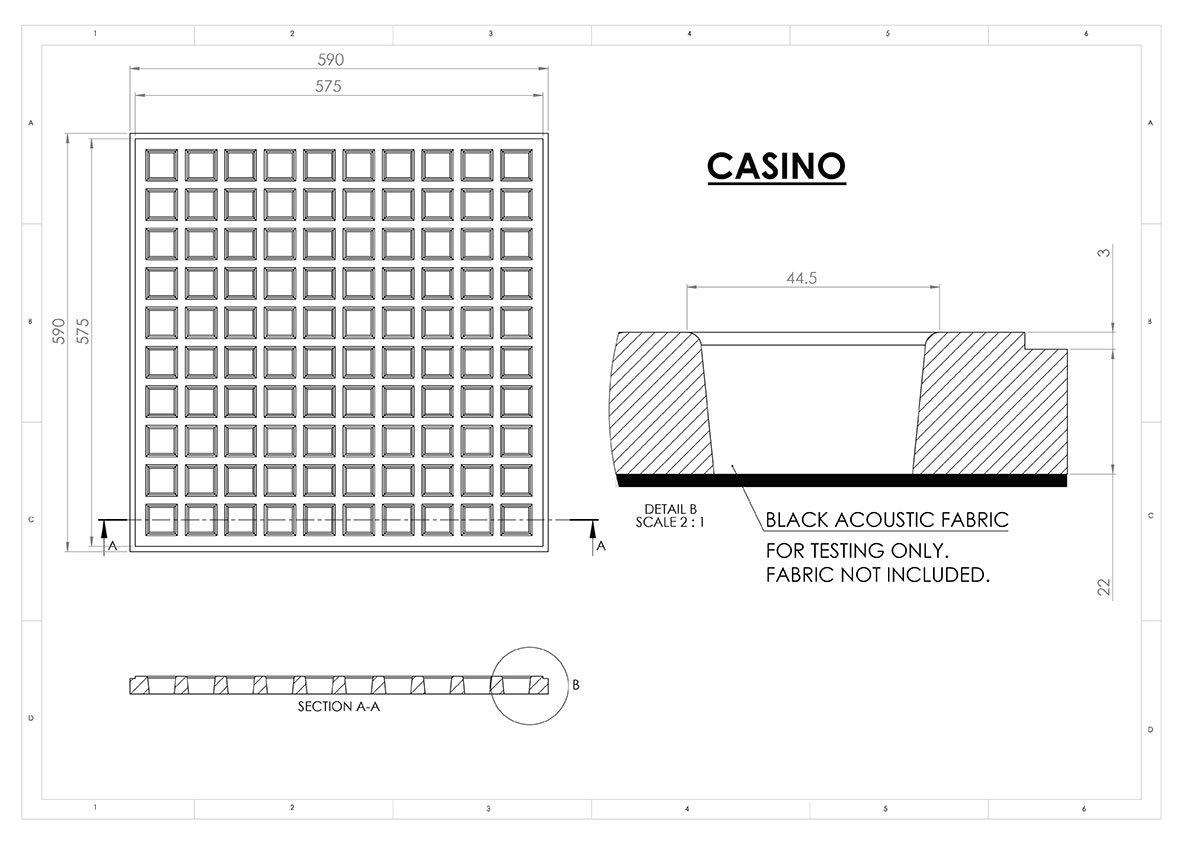

Insulated with black acoustic fabric attached to back of tile for testing only. Fabric not included.

casino absorbtion

Graph 1: Sound Absorption Coefficients of Bailey Interiors Casino Perforated 600mm x 600mm Plaster Ceiling Tiles with Sorbertextile P44FR acoustic fabric adhered to the underside of the tile and tested with a 400mm air gap.

Product Specifications



Tile Name: Casino

Collection: Craftstone

Thickness (mm): 25

Size(mm): 600 x 600

NRC: 0.70¹

% light reflective: 0.70

Mass (Kg/sqm): 14.1

Edge Finish: Square

¹Black Acoustic Fabric

All tiles and panels are supplied without acoustic backing fabric as standard.

Acoustic tests shown here are examples of what can be achieved for NRC using acoustic backing fabric.
